Model: PA HD3

Phased Array Scanner

Ideal for: Bedside Cardiac, Critical Care, EMED, EMS, Hospitalist, Hospitalist/Internal Medicine, Internal Medicine, Med School, Pediatrics

$4,750 CAD
Pay $4,750 CAD now + $785.00 CAD /yr for membership:

wireless ultrasound scanner

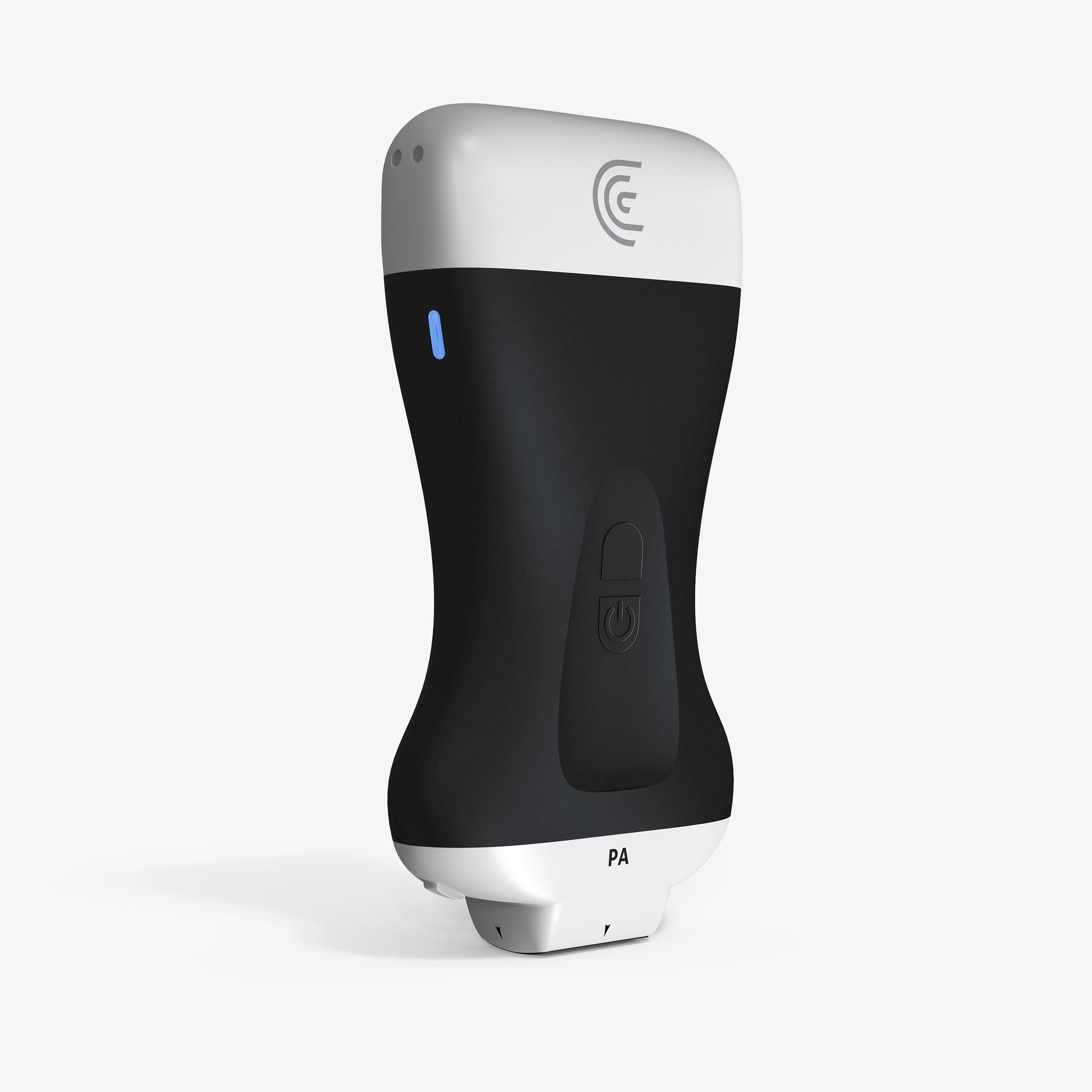

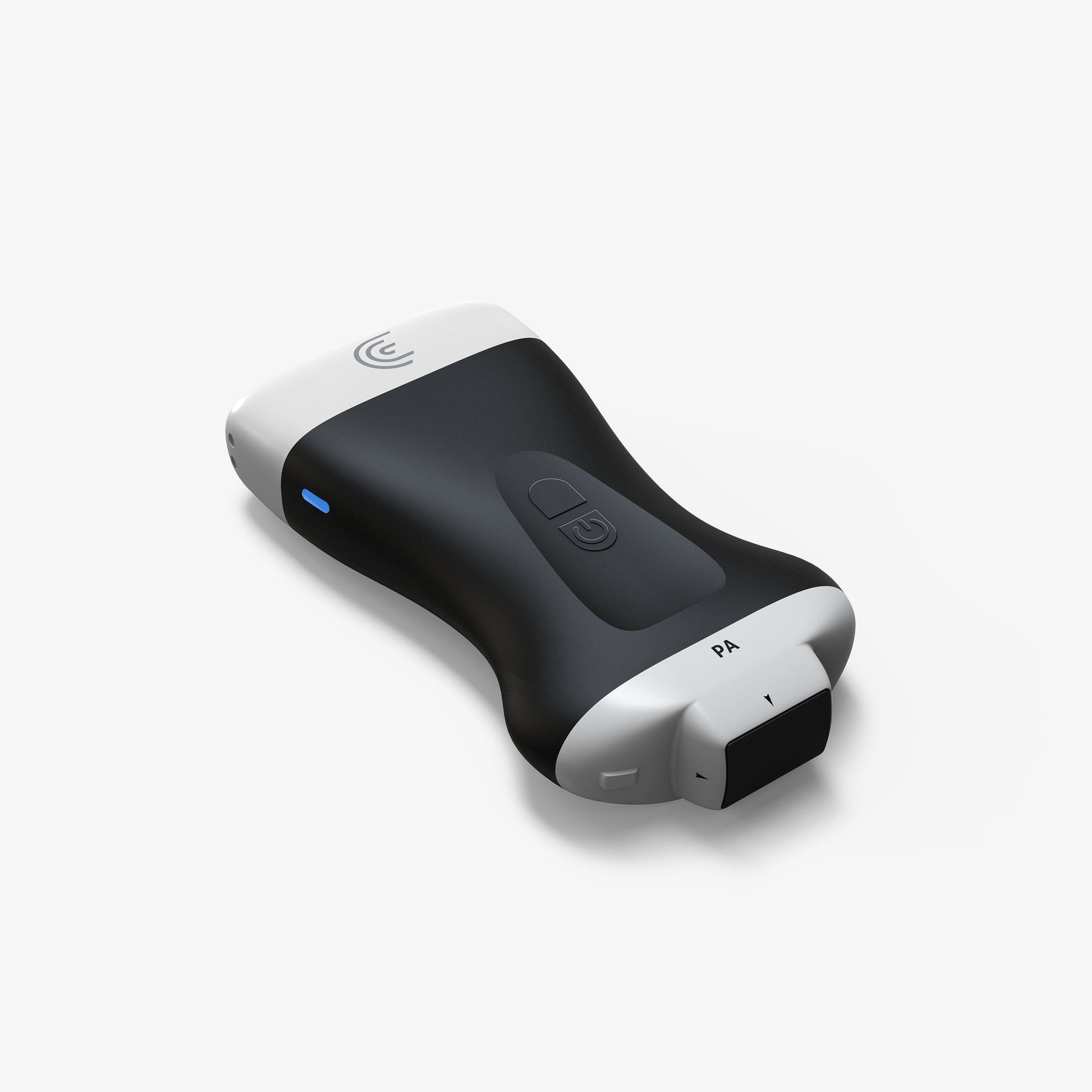

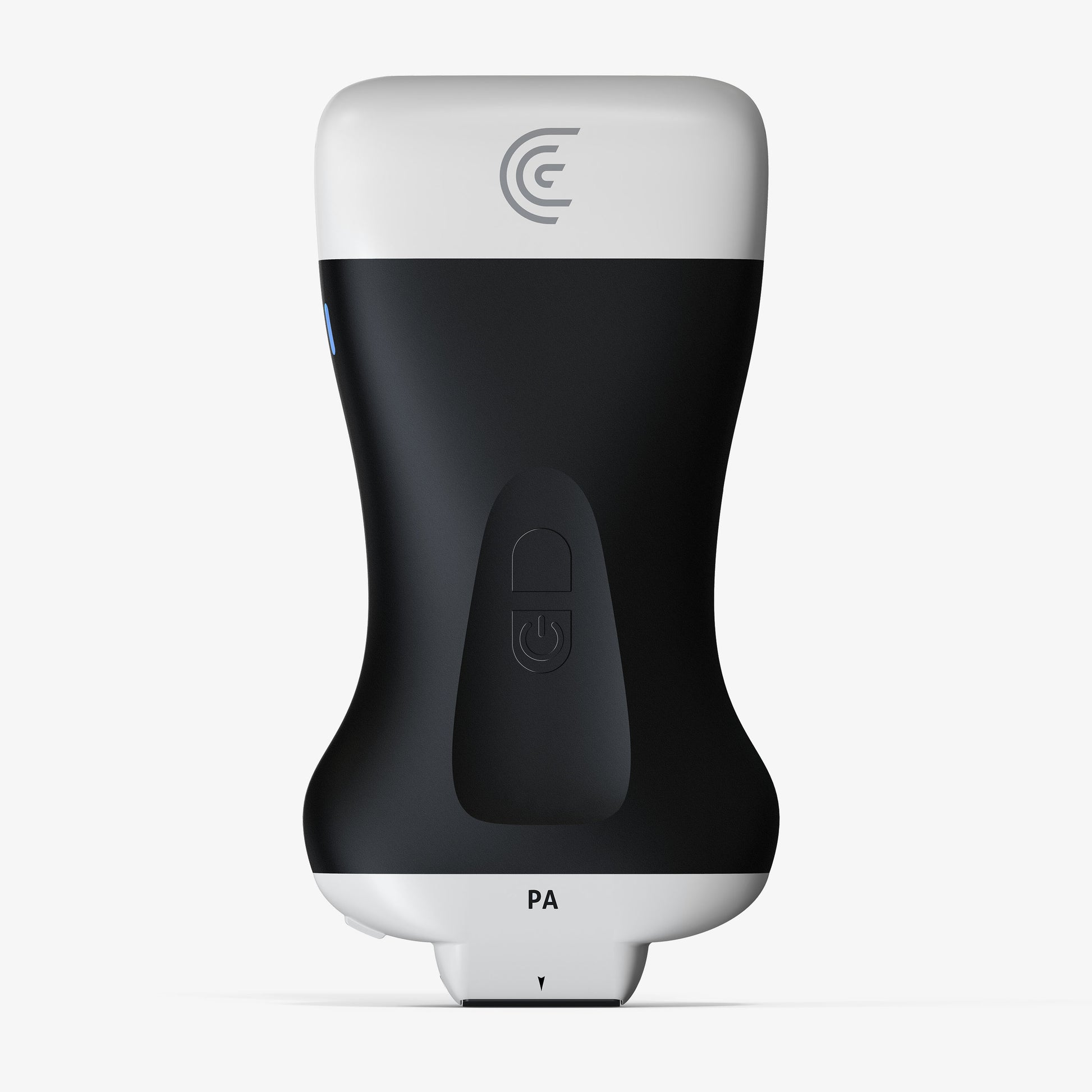

Phased Array PA HD3 - Clarius Portable Handheld Ultrasound Scanner
Model: PA HD3
Phased Array PA HD3 - Clarius Portable Handheld Ultrasound Scanner
$4,750 CAD

Clarius Membership

Billing Frequency:
Every 1 year
$785.00 CAD
  • Every 1 Year
    $785.00 CAD
  • Every 2 Years
    $1,570.00 CAD
  • Every 3 Years
    $2,355.00 CAD
Included in your purchase:

Clarius Membership Subscription

Your new scanner includes a minimum one-year Clarius Membership so you can take advantage of all advanced innovation and services for the ultimate scanning experience and to fast track your mastery of ultrasound.

  • Advanced Specialty Software
  • In-app Clarius Classroom videos
  • AI Powered Tools
  • Monthly Online Training
  • Clarius Storage (Cloud, DICOM, Local)
  • 1-Hour Virtual In-Service
  • Clarius Live Telemedicine
  • And More!
  • Voice Controls
  • Learn More
Recommendation by Specialty
View recommendations by Specialty
  • Bedside Cardiac
  • Critical Care
  • EMED
  • EMS
  • Hospitalist
  • Hospitalist/Internal Medicine
  • Internal Medicine
  • Med School
  • Pediatrics
Product Details
With a small footprint and deep imaging, the Clarius PA HD3 delivers a high-definition window into the chest and abdomen up to 40 cm. It’s the leading choice for medical professionals looking for premium cardiac imaging in an versatile handheld scanner also capable of FAST exams, superficial, and transcranial imaging. Artificial intelligence, specialized presets, and customizable workflows automatically optimize imaging for a seamless experience.
see full product details
Included with your scanner
  • Standard scanning modes: B-Mode, M-Mode, Power/Color Doppler
  • 1 charger for your scanner
  • 3 year standard warranty
  • Product support
  • 30-day risk free returns

Add Your Scanner Accessories

most popular Power Fan HD3
Power Fan HD3
$210.00 CAD
HD3 Extra Charger
HD3 Extra Charger
$184.00 CAD
Premium Carry Bag
Premium Carry Bag
$78.00 CAD

Add Clarius Care Extended Warranty

Get uptime protection with Clarius Care! It has all the coverage of the Standard Warranty, plus:

  • Prompt loaner/replacement scanner
  • 2-way expedited shipping
  • And more!
1 Year Coverage
$350.00 CAD
2 Years Coverage
$700.00 CAD
3 Years Coverage
$1,050.00 CAD
No Clarius Care
Learn more about Clarius Care

Worry-Free Returns

Buy online with confidence with our 30-day risk-free return policy.
Details
Phased Array Scanner
$4,750 CAD for scanner + $785 CAD every 1 year for membership
  • Your Plan
  • Packages
  • Accessories
  • Clarius Care
  • Add to Cart
100% Wireless
iOS & Android Compatible
High Definition Imaging
Ultra-Portable
Specialized for your practice
Overview

Frequency: 1-5 MHz

Max Depth: 40 cm

Standard Clinical Presets / Applications

Applications: Abdomen, Bladder, Cardiac, Lung, Transcranial

Calculations / Anlaysis Packages

- Advanced Cardiac

- Bladder

- Obstetrics

Mobile Platforms

iOS: iOS 14 or later

Android: Android 11 or later

W-Fi 802.11n (5GHz)

Bluetooth Low Energy 4.0+

*ChromeOS is not supported

Security & Encryption

Wi-Fi data channel: TLS 1.2

Bluetooth: AES128 and RSA4096

Local Storage: Temporary

Cloud Storage: Yes (with Membership)

DICOM: Yes (with Membership)

PHI Removal: Yes

PHI Storage: HIPAA compliant

Charging and Bootup

Scan Time: ~60 min

Charge Time: ~90 min

Standby: ~7 days

Bootup: Platform dependent, generally < 30 seconds

Physical characteristics

Dimensions: 148 x 76 x 32 mm (5.8 x 3.0 x 1.3in)

Field of View: 90°

Weight: 292 g (0.64lb)

Programmable Button: 2

Operating Range

Ambient temperatures: between 0°C / 32°F and 40°C / 104°F

Relative Humidity: between 15% and 90%

Recommended maximum exam time: 20 minutes

Connectivity

Data Export Methods: Wireless 802.11abgn, Bluetooth, DICOM, Cloud.

Exported Still Image Formats: JPEG, PNG, BMP, DICOM

Exported Video Clip Formats: DICOM, MP4

Digital Image Storage

Cine loop playback ≥ 20seconds

Digital Storage Hard Drive Size, ≥ 1 TB package

Imaging Modes - Membership

B-Mode, Spacial Compounding, M-Mode, Color/Power Doppler, Pulsed-Wave Doppler

Advanced Presets: OB, Advanced Primary/Critical Care Package

Other Specifications

AI powered and automated image optimization with only single user control required; listen mode for educational streaming of images.

Ultra-High Definition Imaging

Powered by artificial intelligence, piezoelectric elements, and (not one but) eight beamformers, only Clarius HD3 delivers the high performance and advanced imaging modes of cart-based systems in a new handheld form factor that feels like a traditional probe.

Dynamic Range
Chrome Imaging
Virtual Phased
HD Zoom
Penetration Mode
Trapezoidal Imaging
Pulse Inversion Harmonics
Smoothing
