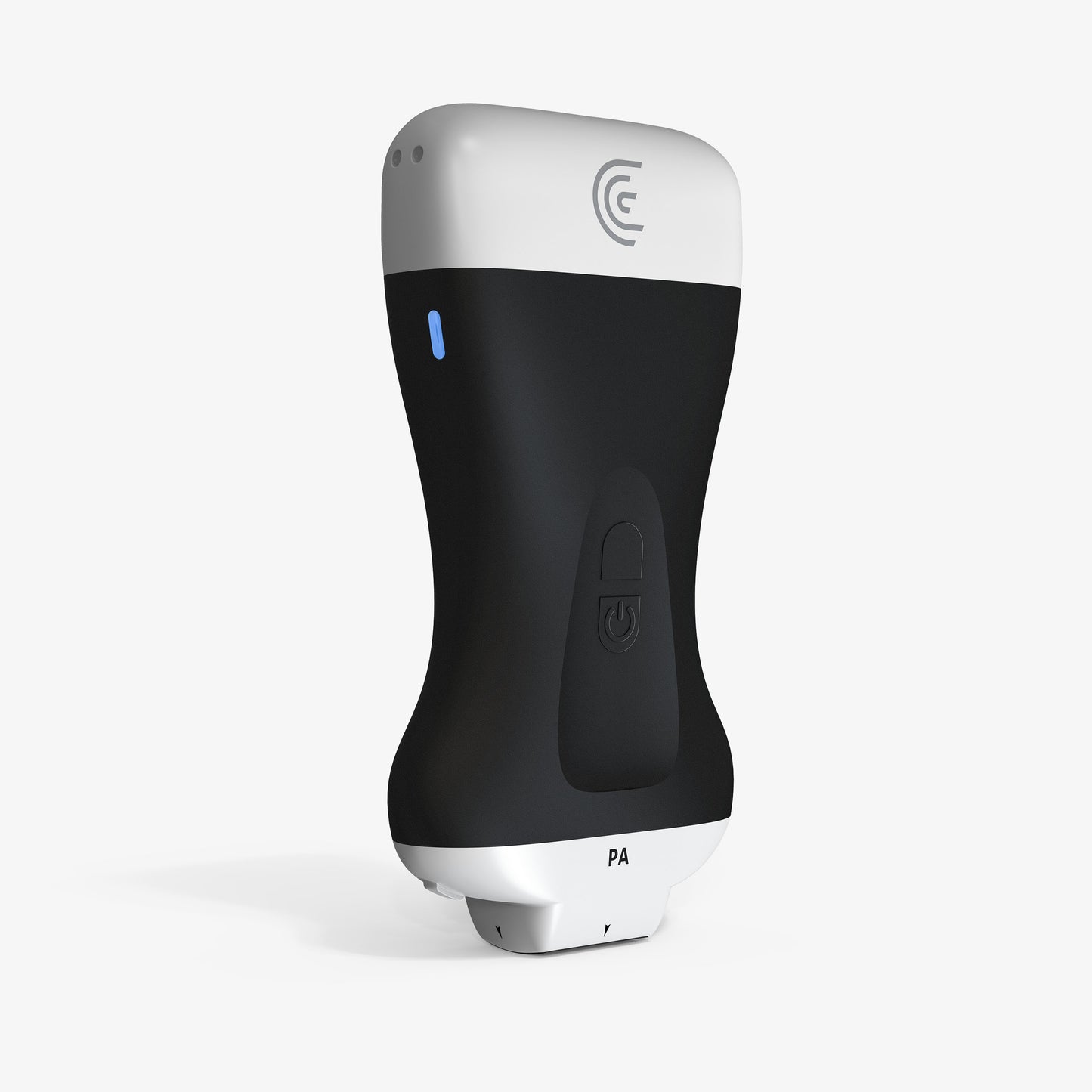

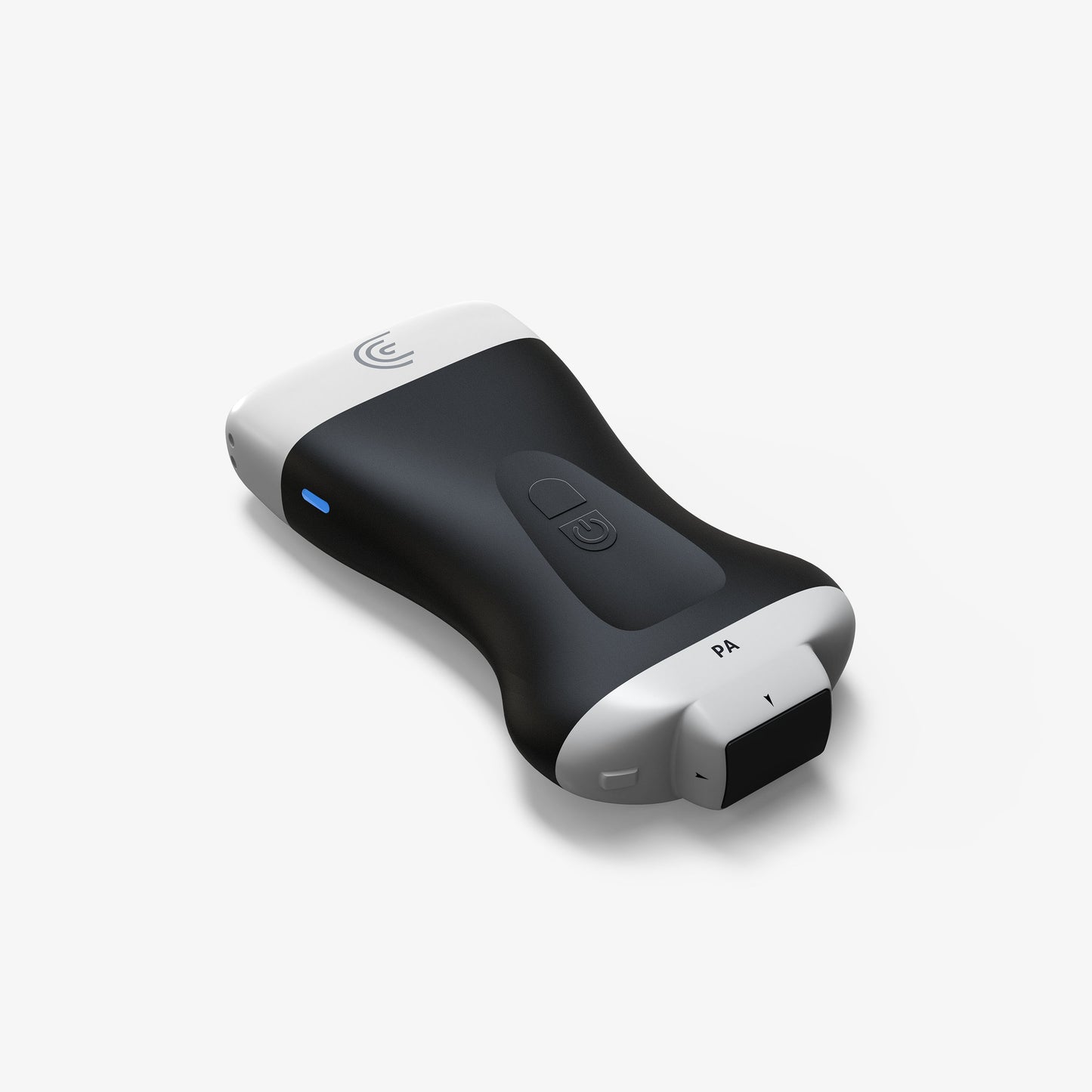

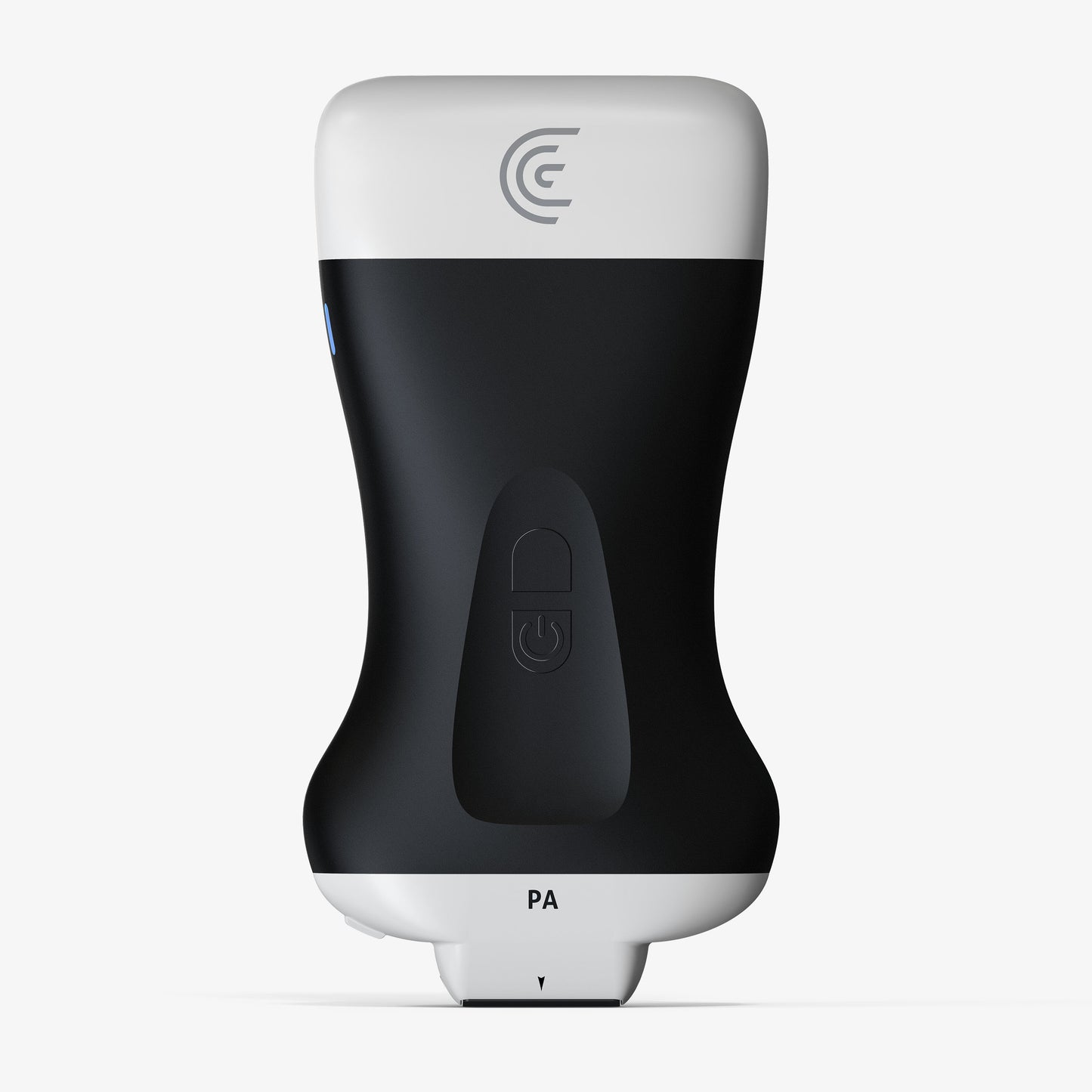

PA HD3

Phased Array Scanner

Ideal for: Bedside Cardiac, Critical Care, Emergency Medicine, EMS, Hospitalist, Internal Medicine

Recommendation by Specialty
View recommendations by Specialty
  • Bedside Cardiac
  • Critical Care
  • Emergency Medicine
  • EMS
  • Hospitalist
  • Internal Medicine
Product Details
With a small footprint and deep imaging, the Clarius PA HD3 delivers a high-definition window into the chest and abdomen up to 40 cm. It’s the leading choice for medical professionals looking for premium cardiac imaging in an versatile handheld scanner also capable of FAST exams, superficial, and transcranial imaging. Artificial intelligence, specialized presets, and customizable workflows automatically optimize imaging for a seamless experience.
see full product details
Included with your scanner
  • Standard scanning modes: B-Mode, M-Mode, Power/Color Doppler
  • 1 charger for your scanner
  • 1 hour of remote in-service training
  • Standard 3-year warranty
  • Live product support
  • Unlimited Users
  • 30-day risk free returns

Select The Option For Your Practice

Most Popular

Scanner & Clarius Membership

$4,490 CAD
for Scanner
+ $785.00 CADbilled every year membership.
Recommended for clinicians that desire unlimited cloud storage, education, and access to all Advanced Software.
Comes with:
  • 3 year standard warranty
  • Monthly online training
  • Unlimited Clarius Cloud Storage
  • All advanced software packages
  • DICOM & Pulse Wave Doppler
  • Voice Control
Choose Your Billing Frequency:
Every 1 year - $785.00 CAD
  • Every 1 year - $785.00 CAD
  • Every 2 year - $1,570.00 CAD
  • Every 3 year - $2,355.00 CAD

Scanner Only

$6,475 CAD
Recommended for clinics that have their own imagery processing systems
Comes with:
  • 3 year standard warranty
  • Product support

Not sure what is the right option for you? Compare both options here

Add Your Scanner Accessories

most popular Power Fan HD3
Power Fan HD3
$210.00 CAD
HD3 Extra Charger
HD3 Extra Charger
$184.00 CAD
Premium Carry Bag
Premium Carry Bag
$78.00 CAD

Add Clarius Care Extended Warranty

Get uptime protection with Clarius Care! It has all the coverage of the Standard Warranty, plus:

  • Prompt loaner/replacement scanner
  • 2-way expedited shipping
  • And more!
1 Year Coverage
$350.00 CAD
2 Years Coverage
$700.00 CAD
3 Years Coverage
$1,050.00 CAD
No Clarius Care
Learn more about Clarius Care

Worry-Free Returns

Buy online with confidence with our 30-day risk-free return policy.
Details
Phased Array Scanner
$4,490 CAD for scanner + $785 CAD billed every 1 year
add to cart - $2,995
  • Your Plan
  • Packages
  • Accessories
  • Clarius Care
  • Add to Cart
Questions? Talk to a Clarius Expert Now!
100% Wireless
iOS & Android Compatible
High Definition Imaging
Ultra-Portable
Specialized for your practice
Overview

Frequency: 1-5 MHz

Max Depth: 40 cm

Standard Clinical Presets / Applications

Applications: Abdomen, Bladder, Cardiac, Lung, Transcranial

Calculations / Anlaysis Packages

- Cardiac

- Bladder

- Obstetrics (via Advanced OB Package)

Mobile Platforms

iOS: iOS 14+ or later

Android: Android 10 (API 21)+

W-Fi 802.11n (5GHz)

Bluetooth Low Energy 4.0+

Security & Encryption

Wi-Fi data channel: TLS 1.2

Bluetooth: AES128 and RSA4096

Local Storage: Temporary

Cloud Storage: Yes (with Membership)

DICOM: Yes (with Membership)

PHI Removal: Yes

PHI Storage: HIPAA compliant

Charging and Bootup

Scan Time: ~60 min

Charge Time: ~90 min

Standby: ~7 days

Bootup: Platform dependent, generally < 30 seconds

Physical characteristics

Dimensions: 148 x 76 x 32 mm (5.8 x 3.0 x 1.3in)

Field of View: 90°

Weight: 292 g (0.64lb)

Programmable Button: 2

Operating Range

Ambient temperatures: between 0°C / 32°F and 40°C / 104°F

Relative Humidity: between 15% and 90%

Recommended maximum exam time: 20 minutes

Operating Range

Ambient temperatures: between 0°C / 32°F and 40°C / 104°F

Relative Humidity: between 15% and 90%

Recommended maximum exam time: 20 minutes

Connectivity

Data Export Methods: Wireless 802.11abgn, Bluetooth, DICOM, Cloud.

Exported Still Image Formats: JPEG, PNG, BMP, DICOM

Exported Video Clip Formats: DICOM, MP4

Digital Image Storage

Cine loop playback ≥ 20seconds

Digital Storage Hard Drive Size, ≥ 1 TB package

Imaging Modes - Membership

B-Mode, Spacial Compounding, M-Mode, Color/Power Doppler, Pulsed-Wave Doppler

Advanced Presets: OB, Advanced Primary/Critical Care Package

Other Specifications

AI powered and automated image optimization with only single user control required; listen mode for educational streaming of images.

Ultra-High Definition Imaging

Powered by artificial intelligence, piezoelectric elements, and (not one but) eight beamformers, only Clarius HD3 delivers the high performance and advanced imaging modes of cart-based systems in a new handheld form factor that feels like a traditional probe.

Dynamic Range
Chrome Imaging
Virtual Phased
HD Zoom
Penetration Mode
Trapezoidal Imaging
Pulse Inversion Harmonics
Smoothing
